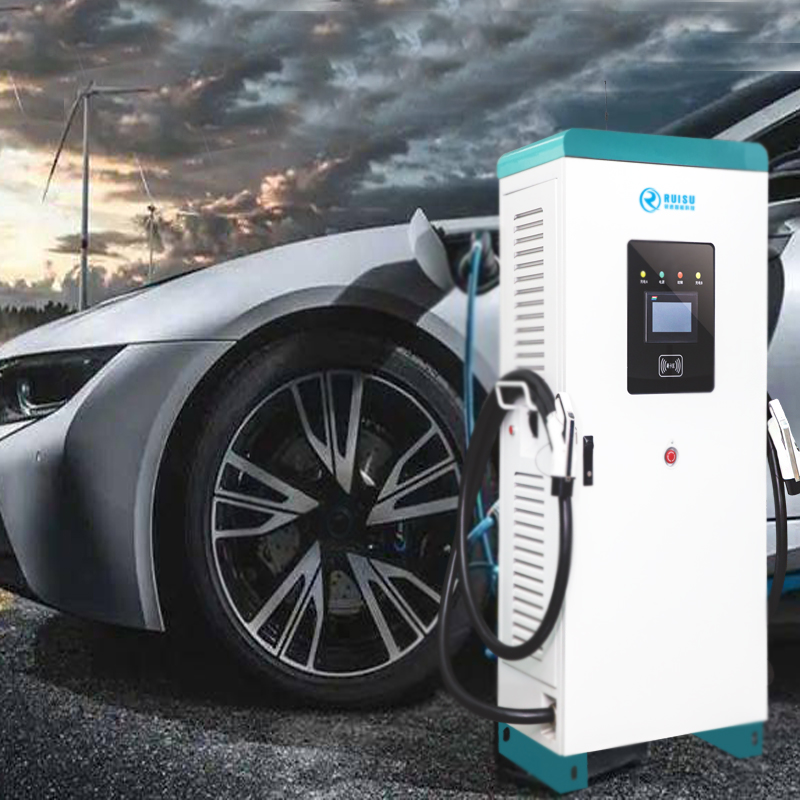

80kw CCS2 DC Universal EV Charging Station 60Hz For Electric Car

Name: 80kw CCS2 DC Universal EV Charging Station 60Hz For Electric Car
Brand: RUISU
Price: 1 USD

Brand Name : RUISU

Model Number : RSDC1000-60KW

Certification : CE ISO

Place of Origin : GUANGZHOU,CHINA

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1500 Pcs Per Month

Delivery Time : 20-40 DAYS

Packaging Details : Dimension (H*W*D)(mm) 1731*700*500mm

Dimensions (width xthickness x height) : 1731*700*500mm

Input Frequency (Hz) : 50 /60 Hz

Output Voltage Range (V) : 200-1000VDC

Max. Output Current (a) : 250A

Cable Length: Charger Gun : 5-7m(CCS2), Customized Acceptable

DC Output Current (A) : 160A (single gun)

Noise (dB) : <=65

Contact Now

Universal 80kw CCS2 Dc Emergency Rfid Ev Electric Vehicle Car Charging Stations Ev Charger Pile

Advantages:

1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically

match the charging power required by the electric vehicles connected to any terminal.

2. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low

harmonics, and high intelligence.

3. Dynamically allocate the charging power according to the charging demand from the BMS of the charging

vehicle to ensure charging safety.

4. Standard 4G communication module; charging operation swipe card / scan code; payment method: RFID

card / WeChat/Alipay.

5. Have two chargers in standard configuration, but optionally have single charger.

Technical Parameters:

Product Type	80KW All in one DC Charger
Product Model	RSDC1000-80KW
Dimension (HWD)(mm)	1731700500
Display Mode	7" Color Touch Screen
AC Input Voltage Range (V)	260-470VAC, 3P+N+PE (Wye connection)
AC Input Frequency (Hz)	50 /60 Hz
Power Factor	≥0.99
Current Harmonics (THDI)	≤5%

Efficiency	≥96% (full load)
DC Output Voltage Range (V)	200-1000Vdc
Output Voltage Range under Constant Power (V)	300-1000Vdc
DC Output Current (A)	160A (single gun)
Output Power (KW)	80KW
Length of Charging Gun (m)	5
Noise (dB)	<=65
Charging Operation	Swiping card/scanning code

Running Indication	Power supply, charging, fault
Heat Dissipation Control	Air Cooling
BMS Auxiliary Power Supply (V)	12/24
Power Distribution	Equipartition/Intelligent Distribution/Switching
Altitude (m)	≤2000
Working Temperature (ºC)	-20~50
Storage Temperature (ºC)	-40~70
Average Relative Humidity	5%~95%

Protective Function	Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
Charging Selection	RFID card, WeChat Official Account, Alipay
Communication Interface	CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material	Outdoor IP54 / sheet metal shell
Product Introduction	1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.; 2. Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment; When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 4. In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light; 5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54; 6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware.
