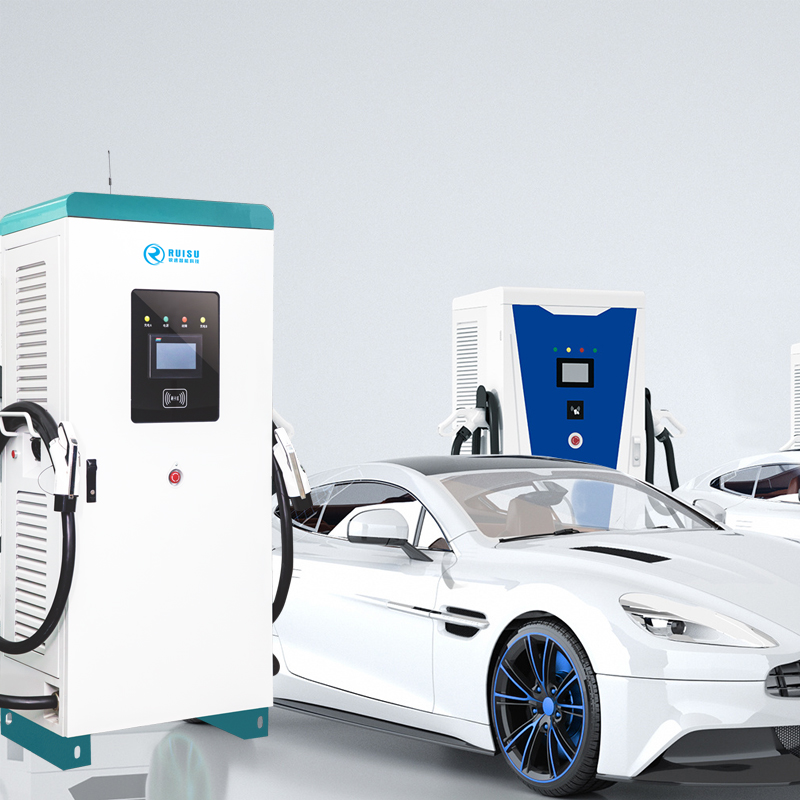

DC CCS 60kw EV Charger EVSE Ip54 Waterproof For Public Fast Charging

Product Categories

Guangzhou Ruisu Intelligent Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

DC CCS 60kw EV Charger EVSE Ip54 Waterproof For Public Fast Charging

Name: DC CCS 60kw EV Charger EVSE Ip54 Waterproof For Public Fast Charging
Brand: RUISU
Price: 1 USD

Brand Name : RUISU

Model Number : RSDC1000-60KW

Certification : CE ISO

Place of Origin : GUANGZHOU,CHINA

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1500 Pcs Per Month

Delivery Time : 20-40 DAYS

Packaging Details : Dimension (H*W*D)(mm) 830*824*1966

Input Voltage : 380VAC, 1 phase + N+PE

Output Power (KW) : 60KW

Input Frequency (HZ) : 45~55Hz

Output Voltage (V) : 200-1000Vdc

Max. Output Current (A) : 0-250

Contact Now

60kw DC CCS Public Ev Charger Supply EVSE Fast Ev Charger Electric Car Charger

Advantages:

1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by the electric vehicles connected to any terminal.

2. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low harmonics, and high intelligence.

3. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle to ensure charging safety.

4. Standard 4G communication module; charging operation swipe card / scan code; payment method: RFID card / WeChat/Alipay.

5. Have two chargers in standard configuration, but optionally have single charger.

Technical Parameters:

Product Type	RSDC 60KW DC Charge
Product Model	RSDC1000-60KW
Dimension (HWD)(mm)	810* 511*1685
Display Mode	LED Display
Input Voltage	380VAC, 1 phase + N+PE
Output Power (KW)	60
Input Frequency (HZ)	45~55Hz
Output Voltage (V)	200-1000Vdc

Max. Output Current (A)	0-250
Length of Charging Gun (m)	5
Electric Leakage Protection (mA)	30
Human-machine Display	7" Color Screen
Charging Operation	Swiping card / scanning code
Measuring and Accounting	Time-sharing accounting
Running Indication	Power supply, charging, fault
Heat Dissipation Control	Natural cooling

Protection Function	Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc
Charging Selection	Self-provided, timing, quantitation, fixed fee, appointment etc.
Payment Method	RFID card, WeChat Official Account, Alipay
Communication Interface	CAN with standard configuration, Ethernet, RS485, RS232, GPRS
Protection Grade / Shell Material	Outdoor IP54 / sheet metal shell
Optional	Install the bracket when landing; hanger
Product Introduction	1.60KW Intergrated charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; 2.Humanized operation: the charging, accounting and other operations can be realized on phone APP; 3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54; 4.Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection;

DC CCS 60kw EV Charger EVSE Ip54 Waterproof For Public Fast Charging

After-sale Service:

1. Two years warranty for the whole body.

2. If any parts break during the period, it's free replacement.

3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.

Additional Options:

1. Customized cable length.

2. Customized charger connector.

3. Customized Box color and customized logo.
